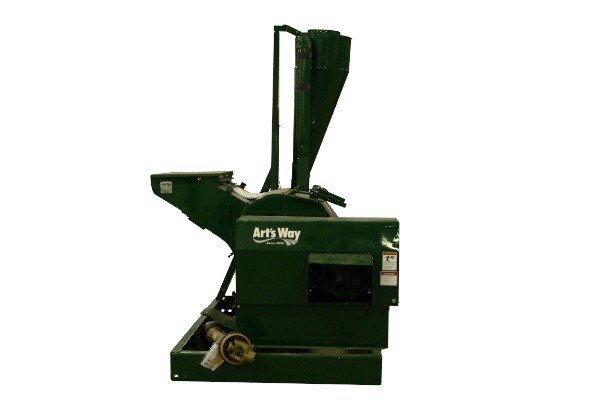

Art's Way Stationary Hammer Mill Kunau Implement, Iowa

Features
Specs

Features

Durable DesignAt the core of this time-tested Hammermill are the 96 heat treated steel hammers for long wear life and uniform particle reduction. Lower maintenance costs are an added benefit of the Hammermill since each hammer can be turned four times, extending the mill’s productivity. Optimal hammer design and placement will provide maximum contact with the feed ingredient. The durable design of the drive bearings and shaft also help to keep maintenance costs down. A magnet installed in the ill’s grain entry throat collects tramp metal to insure longer life of the hammers and the screens.

Drive Options

These portable mills can adapt to either PTO or electric drive. Hammermills may be equipped with a heavy duty 540 RPM or 1000 RPM drive assembly or as an electric drive.

Capacity of Mixing Tank	N/A
Width of Mill	26 in.
Height (with tire size)	106 in.
Overall Length	83 in.
Width with Auger Feeder	68 in.
Weight with Auger Feeder	1,350 lbs.
Reversible Hammers	96
Screen Area	780 sq. in.
PTO Drive	1000 RPM, Electric
Operating Speed of Mill	2,800-3,000 RPM
Horsepower Requirement	40-60 hp
Auger Feeder Length	N/A
Auger Feeder Diameter	N/A
Auger Feeder Type	N/A
Diameter of Mixing Auger	N/A
Discharge Auger Type (lift & swing)	Mechanical
Discharge Auger Tube Diameter	8 in. in Hopper
Unload Auger Reach 60° Angle	N/A
Unload Auger Reach 3 ft. Extension 60° Angle	N/A
Unload Auger Reach 6 ft. Extension 60° Angle	N/A
Supplement Hopper Size	N/A
Tires	N/A
Ground Clearance	N/A
