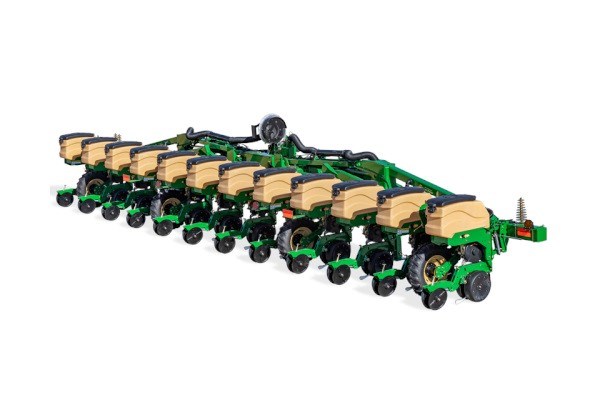

Great Plains PL5205

5000 SERIES ROW UNIT

This design utilizes ductile cast parallel arms for long-term row unit stability. The 15", 4mm blades are offset 1/2" to form a perfect seed trench. Beginning in 2025, new models will feature new 5005 Series row units.

GREAT PLAINS ISO SOLUTIONS SUITE

The Great Plains ISO Solutions Suite delivers a simplified and universal ISOBUS-based interface solution that includes plug-and-play setup without the need for expensive aftermarket unlocks and subscriptions; access to remote support; and terminal extension capabilities from the field. This solution can be used with all Great Plains ISOBUS-compatible products.

3-DRIVE OPTIONS

Choose between ground drive, hydraulic drive, or Individual Row Control (IRC) for turn compensation and prescription map planting.

3-PT OR 2-PT WITH LIFT ASSIST

PL5200 planters can be optioned with either full 3-point mounting for tractors large enough to handle the weight or 2-point mounted with castoring lift assist wheels to help with the lifting and flotation.

EXCLUSIVE HITCH OFFSET

The optional side-shift feature helps keep the row units centered on top of the beds, yet gives twin-row models the ability to convert between single and twin row spacings in under an hour.

ON-BOARD SEED DELIVERY OPTIONS

The PL5200 planter offers a choice of on-row individual hoppers or bulk seed with air delivery. The 50-bushel bulk hopper is located close to the tractor to reduce the tractor’s 3-point lifting requirements.

SIMPLE SEED DELIVERY

Seed distribution on bulk models is handled by a venturi system without any moving parts. This ensures reliability and makes cleanout easy.

SUREFORCE BY AGLEADER

Now available with SureForce by AgLeader! SureForce responds instantly to changing conditions, giving each row the exact pressure needed to plant at the ideal depth.

OPTIONAL CAMERA

ISOBUS-camera kits help producers see surroundings.

OPTIONAL SCALES

Verify seed usage to help confirm seeding rates and maximize efficiency.

OPTIONAL ROW-MOUNTED COULTER

Inline coulters aid in row unit penetration and cut trash ahead of opener disc blades.

7" XD or 12.1" XD+ Monitor

Choose between two Topcon monitor sizes.
