Hardi DELTA FORCE 24-39 m

Main tank

Excellent tank design for perfect weight distribution

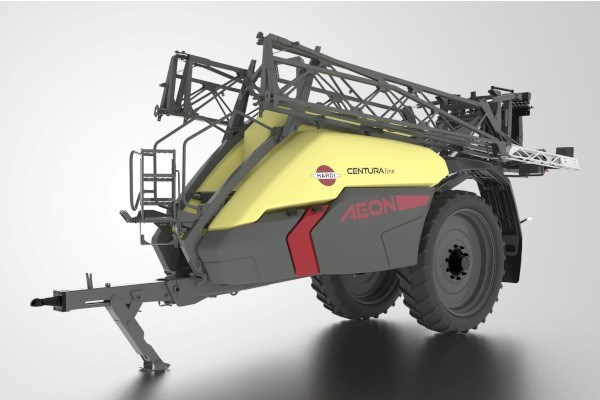

With the AEON, we have outdone ourselves in the search for maximum driving stability.

We have set out to refine the shape of the tanks with an objective to prevent sloshing liquid from disturbing the machine’s balance while on the move. The AEON comes in four sizes: 4200, 5200, 6000, and 7000 litres. Each size is designed to meet specific requirements of the farming operation. The result is a novel design with a wedgeshaped front, this guarantees complete tank emptying, even in hilly terrain.

Perfect weight distribution is achieved with dual RinseTanks fitted on both sides of the sprayer towards its front to keep weight on the drawbar. By transferring weight to the tractor, better traction is achieved towards the end of spraying. Add to this the sprayer’s excellent width-to-length ratio, and longer booms will never be a problem. The AEON offers fantastic boom stability, even at high speed.

With its perfectly placed low centre of gravity and strong chassis, the AEON will stand every test of durability.

Main tank benefits

• Enhanced stability: Precisely balanced weight distribution ensures optimal efficiency during operations.
• Low centre of gravity: This design aspect adds to the sprayer’s steadiness, reducing the risk of tipping
• Simplified cleaning: Its design facilitates hasslefree maintenance and thorough cleaning
• Deep sump: Ensures maximum liquid drainage, reducing wastage and ensuring complete utilisation.

Chassis

Designed to last
Full suspension
Sprayers often operate in rough terrains and conditions – and the AEON is the epitome of toughness. It is standard supplied with full suspension to protect all mechanical components and for incomparable operator comfort and safety, even at high speed. A completely new addition is the hydraulic suspension of the axle centre to ensure steady boom movements.

Drawbar leaf-spring suspension

• Minimal transfer of trailer movements to the tractor
• Strong design for loads of up to 4 tonnes
• Easy coupling with patented, vertical hydraulic jack to lift drawbar (fully integrated in drawbar during transport)
• Bolted K80 coupling

Hydraulic axle suspension

• Cutting-edge suspension for full absorption of movements during transport and fieldwork
• Integrated frame and axle design for reduction and deflection of obstacle impact
• A single, strong cylinder secures perfect suspension, also on slopes
• Reliable and easy to service

Suspended ParaLift

• Protection of the boom during transport and fieldwork
• Push-type cylinder position for perfect damping
• Consistent damping regardless of boom height
• AutoTerrain boom management optimises height at all times

TechZone

Your working companion for all conditions
The AEON has been developed with the operator in mind. No detail has been left to chance in the search to optimise user-friendliness and operator safety. With its sleek design, smooth surfaces and covers to protect all vital parts, the AEON is your working companion for all conditions.

Both the TechZone and the WorkZone have protective covers that swing upwards to provide the operator with an illuminated, covered space for work in all kinds of weather.

The TechZone – easy to control and service
The TechZone, on the right side of the sprayer, gives easy access to the isolated spray circuit, its large-dimension filters and the second pump.

FlexCapacity pump
This extra pump boosts the combined flow capacity to 450 l/min, allowing for high application rates without impairing agitation. Similar to the main pump, it is a HARDI trademark diaphragm pump – robust and easy to service.

Large-dimension filters

• The HARDI EasyClean filter is a high-capacity suction filter.
• The HARDI CycloneFilter is a unique, self-cleaning pressure filter, providing high efficiency without limiting flow. Combined with standard 22 mm stainless steel boom lines, it ensures optimum spray distribution at high application speeds or volumes.

WorkZone

The WorkZone – Intuitive operation

The WorkZone on the left hand side of the sprayer provides the operator with safe control of all sprayer functions – filling, mixing, agitation and spraying.

• Comfortable, large and secure WorkZone
• Covered work area with protective illuminated covers
• FluidBox 7000 / 8000 groups main sprayer functions on one screen
• TurboFiller with integrated work table
• Waterproof 40-litre SafetyLocker

FluidBox 7000 / 8000

The intelligent FluidBox gives quick and direct access to common operations on one screen, including AutoFill, AutoAgitation and AutoWash.

• Intuitive colour interface with button operation
• Simplified, integrated calculator for sprayer preparation,
  calculates pesticide and water volume
• Main ON/OFF and emergency stop for all functions
• Nozzle test

TurboFiller – Fast and efficient mixing

The shape of the hopper and its special TurboDeflector at the bottom create a cyclone effect to incorporate even the most difficult-to-mix compounds.

• Rapid filling and transfer into main tank
• High mixing capacity for powders and liquids
• 35 l capacity with stainless steel contents indicator
• Hopper with integrated table at work height
• Built-in rinsing system – 2 rinse nozzles and 1 external lance

ComfortTrack

ComfortTrack wheel steering

Equipped with ComfortTrack wheel steering, the AEON will always track the tractor’s rear wheels, even on tight turns, eliminating excess crop damage. The sprayer’s compact design allows for a large steering angle of 27°. The combination of ComfortTrack and full suspension secures a small turning radius of only 6.3 m along with perfect boom position, also when turning on the headland.

• Large steering angle
• Automatic or manual operation
• Effective regardless of tractor speed
• Reverse gear with automatic re-centering
• Steering possible with the boom in transport position


ComfortTrack turns the wheels, not the axle, and the long mudguards follow the wheels, keeping the nozzles clean in dry and wet conditions.

The AEON allows for large-diameter wheels with big footprints for better load distribution and less soil compaction. With 520/85R46 tyres, the axle clearance is 81 cm.

PulseSystem

Full integration with HARDI TWIN system

Together with the TWIN system, which already has best-in-class drift reduction and penetration characteristics, the HARDI PulseSystem is an essential additional step forward in controlling where pesticides are deposited directly from the driver’s seat.

Combining two innovative drift-reducing technologies, HARDI has developed an application system with the potential to deliver the least amount of drift on the market.

Wide flow-rate with one nozzle size

By opening and closing the nozzles, the HARDI PulseSystem can keep the nozzles open from 30-100% at the same pressure flow while ensuring the droplet size is unaffected. Therefore, the same nozzle can be used at several different driving speeds.

At the same time, drift is minimised while the flow rate is optimised, as the most optimal droplet size can be maintained, unlike a conventional system where more drift will occur the more liquid you try to squeeze through the nozzles.

Reduce chemical consumption and environmental impact with CurveControl

Thanks to the CurveControl function, chemicals are saved, and the environmental impact is reduced in fields with many curves or when spraying around windmill towers or remises. Here, a minimum of spray liquid is applied at the inside and full flow, where the boom runs fast at the outer wings. This automatically prevents over and under-dosing.

• Uses pulsation rather than pressure to maintain the correct application volume per nozzle
• The solenoid valve turn the flow to the nozzles on and off, 20 times a second to control their flow
• Wide flow-rate with one nozzle size from 30 to 100% variation

Automatic switching on and off individual nozzles

In addition, the PulseSystem works with a single nozzle on/off – on a 36 m boom, all 72 nozzles are open and closed on nozzle level. This can be done, for example, via digital application maps. The spray job can be done in small spots, the spot size depends on the spray width of the nozzle and a speed-related security level, which is set up to open the nozzle early enough to hit the target. Depending on the amount of weed spots in the field, at the time of application, the saving potential is up to 90% compared to a complete broad spray of the field.

The HARDI PulseSystem is supplied for the conventional DELTA FORCE boom on AEON and NAVIGATOR, as well as the TWIN boom on AEON.

* Only available for certain markets. Not available for Australia and New Zealand
