HayBuster 2100 Balebuster

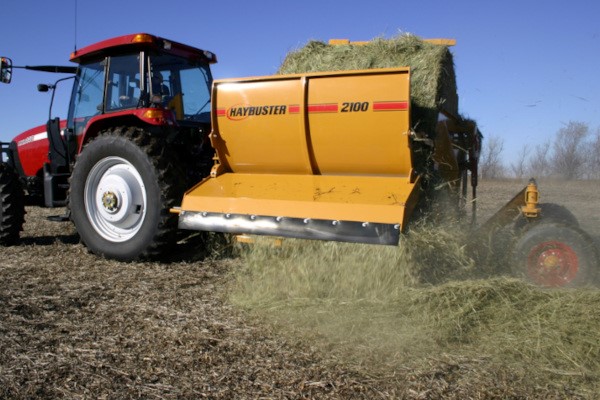

Model Photo



Features

The 2100 has been an excellent erosion control tool for road sides and mining.

It is a single bale loader machine that provides solutions for:

  • Range feeding
  • Bedding
  • Odor control on wastewater lagoons
  • bunk feeding
  • Erosion control



Semi-Mounted

The 2100 Balebuster is semi-mounted, making it easy to maneuver and back into tight places. This semi-mounted unit transfers approximately 55% of the 2100’s operating weight directly to the tractor, keeping the weight off the Balebuster.

Heavy Duty Loader

This machine is self-loading, and it only requires one person to operate.

Shredder Chamber

The Shredder Chamber has a 3-chain slatted conveyor that provides the needed traction to handle all round bales: hard or soft core. The chamber is 15% larger than previous models, reducing spillage and making hay and straw placement much easier. It processes hay into usable rations, making your hay go farther and reducing your costs.

Heavy Duty Offset Rotors, Flails, & Clearance

This unit’s heavy-duty offset rotor, flails, and reduced flair tip clearance work together to throw straw further and process both dry and wet bales.

Spreads Straw up to 40 Feet

As a primary concern for farmers, preventing accelerated soil erosion and minimizing sedimentation. The 2100 Balebuster is the perfect solution for excellent erosion control.

Wide Spread Caster Wheels

The 2100’s strong caster wheels and large 9.5x14 8-ply tires combine to easily navigate over boggy ground and rough terrain. They also provide additional stability and ease of backing.

Easily Adjustable Deflector

This bale processor is equipped with a variable position deflector that is easily adjustable.

Standard Features

  • Tractor Semi Mounted, for easy maneuvering & positioning of straw.
  • Rear caster wheels to support weight of machine and bale.
  • Heavy-duty loader for easy bale loading. Just back into bale, hydraulically roll shredder frame which loads the bale.
  • Heavy-duty chain conveyor with more durable chain and heavier drive shafts.
  • 1000 RPM drive that can throw straw up to 40 feet.
  • Easily adjustable deflector for feeding or bedding.



Optional Features

  • Stripper channel kits
  • Category II/III Quick-Tach Hitch
  • Wide Deflector Belt
MODEL2100 Balebuster (Semi-Mounted Round Bale Processor)
WEIGHT -
Total3,700 lbs. (1,678 kg)

SHIPPING DIMENSIONS -
Width8 ft. 5 in. (2.6 m) loader & deflector folded.
Length12 ft. 9 in. (4.01 m)
Length8 ft. 5 in. (2.6 m) caster wheels removed.
Height6 ft. 5 in. (1.96 m) loader folded.

TRANSPORT DIMENSIONS -
Width10 ft. 8 in. (3.25 m)
Length12 ft. 9 in. (4.01 m)
Height6 ft. 5 in. (1.96 m) loader folded

WORKING DIMENSIONS (WITH BALE) -
Width13 ft. (3.96 m)
Length12 ft. 9 in. (4.01 m)
Height9 ft. 8-3/4 in. (3.05 m)

CHASSIS FEATURES -
HitchSemi-Mounted, attaches to lower Lift Links of Tractor's 3-PT Hitch
Tires(2) 9.5 x 14 -  8-Ply
Wheels(2) 6 x 14 - 5 Bolt Drop Center
 BearingsTapered Roller
AxleCaster

BALE LOADER-
TypeHydraulic With Mechanical Linkage
Bale Tines(2) Fixed Width
Hydraulic Cylinder(2) 2 ½” x 16” (6.35 cm x 40.64 cm) Double Acting

BALE CONVEYOR -
Type3 Roller Chains with Bolt-on Cross Slats
DriveHydraulic Motor with Hydraulic Flow Control

BALE SHREDDER CHAMBER -
Max. Bale Size6’ long x 6 ½’ Dia. (1.83 m x 1.98 m)
Max. Bale Weight2,000 lbs (1000 kg)
Rotor Length78 in. (1.83 m)
Rotor Diameter (Flails extended)25" (64.77 cm)
Rotor BearingBall, 1-3/4 in. (4.44 cm)
Number of Flails30
Flail TypeHeavy Duty Flails, 7/16 in. (11.11 mm) Thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging
Number of Stripper Plates1
Number of Slug Bars5
Deflector Shield6 Adjustment Positions through 120° range
Max. Horizontal SpreadStraw up to 50 ft.

OPERATOR CONTROLS -
Loader1 set of Tractor Hydraulic Outlets
Bale Conveyor1 set of Tractor Hydraulic Outlets
Bale Conveyor SpeedAdjustable Hydraulic Flow Control Valve
Slug BarShim adjustable
Deflector Shield PositionHand Lever with Position Settings Through 120° range

REQUIREMENTS FOR OPERATION TRACTOR -
PTO Horsepower required65 to 155
hree Point HitchCAT II / III
Min. Hitch Lift Capacity4,000 lbs. (1,818.18 kg)
PTO Type1000 RPM, 1 3/8” Dia. Shaft With 21 Splines
Min. Hydraulic Output8 gpm at 1800 psi (46 lpm x 10,345 kPa)
Hydraulic Remote Controls2 Double-Acting Control Valves with Quick Coupler Outlets
Tractor WeightMust be of equal or greater weight than that of a 2100 BALEBUSTER and 1 Bale
SMV SignStandard Equipment
Road LightsStandard Equipment
