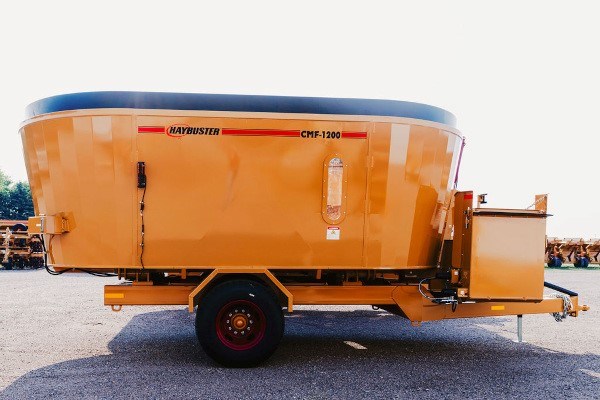

HayBuster CMF-1200

Standard Features

Mixing Capacity: The CMF-1200 has a 1200 cu. ft. mixing capacity with a tare weight of 34,000 lbs.

Unloading Door: Large 24” x 42” unloading door for fast, even unloading and clean out.

Augers: Heavy-duty 88” screw augers with seven self-sharpening serrated knives each.

Oscillating Axles: Oscillating heavy-duty axles with four 385/65R 22.5 tires provide even weight distribution on uneven or frozen ground.

Heavy-Duty Frame: The CMF-1200 is built with a heavy-duty 6” x 10” x 3/8” steel tube frame for strength and durability.

2-Speed Gearbox: The CMF-1200 comes equipped with a heavy-duty constant velocity 1000 RPM PTO with 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.

Optional Features

Unloading Options:
Cross Conveyor only with right- or left-hand drives.

Cross Conveyor with spouts or endgates. Magnets are available for the spouts.

Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.

Dogleg Style Conveyor Also Available

Magnets on Discharge Spouts: Magnets on the spouts remove ferrous metal, such as bale wire, from feed providing the highest quality feed available.

Rear Discharge Door: The optional rear discharge door provides an additional means of discharging feed.

Digi-Star Scale: Choose from any Digi-Star scale indicator. Also available are optional Digi-Star Feed Management Programs.
