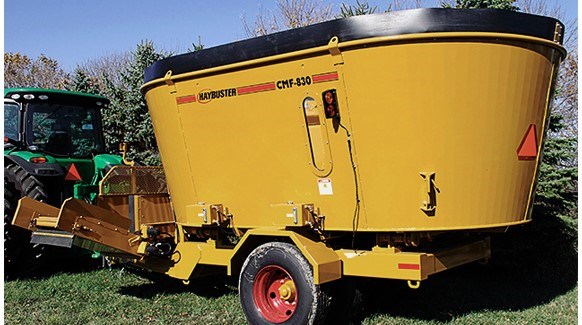

HayBuster CMF-830

The 830 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.

They also mix materials like distillers, silage, corn and more.

Standard Features

Mixing Capacity: The CMF-830 has an 830 cu. ft. mixing capacity with a tare weight of 21,500 lbs.

Unloading Door: Large 24” x 42” unloading door for fast, even unloading and clean out.

Augers: Heavy-duty 88” screw augers with self-sharpening serrated knives, driven by 2 HD USA gearboxes.

Oscillating Axles: Oscillating heavy-duty axles with four 315/80 R 22.5 20-ply rated tires provide even weight distribution on uneven or frozen ground.

Heavy-Duty Frame: The CMF-830 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and durability.

CV PTO or Optional 2-Speed Gearbox: The CMF-830 comes equipped with either a heavy-duty constant velocity 1000 RPM PTO or an optional 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.

Optional Features

Unloading Options:
Cross Conveyor only with right- or left-hand drives.

Cross Conveyor with spouts or endgates. Magnets are available for the spouts.

Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.

Dogleg Style Conveyor Also Available

Magnets on Discharge Spouts: Magnets on the spouts remove ferrous metal, such as bale wire, from feed providing the highest quality feed available.

Rear Discharge Door: The optional rear discharge door provides an additional means of discharging feed.

2-Speed Gearbox: The 2-speed gearbox is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixer's drive train.

Digi-Star Scale: Choose from any Digi-Star scale indicator. Also available are optional Digi-Star Feed Management Programs.
