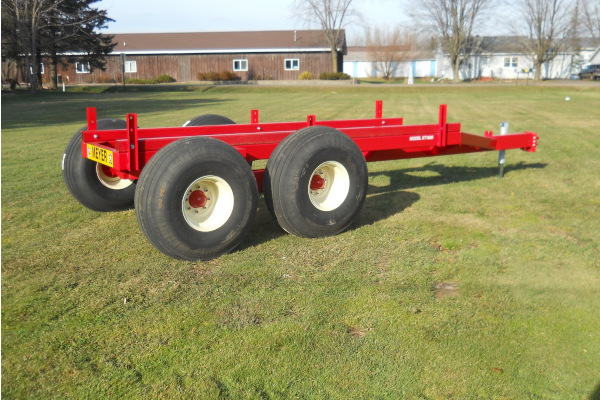

Meyer Farm XT1600 Tandem Trailer / Oscillating Axles - 16 Ton
Double tap to zoom
Chassis / Tandem XT1600 Tandem Trailer / Oscillating Axles - 16 Ton
Meyer XT1600 Tandem Axle Trailer Chassis is the perfect match for a 14, 16, 18 and some 20' forage boxes along with other applications.
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
-
Schedule Demo
Schedule A Demo
Fields with asterisks* are required.
-
Share
Features
- Tubular hitch with adjustable clevis standard
The XT1600 features a 4x8 tubular hitch assembly with heavy square jack and adjustable clevis hitch system. - HD Tube Frame
3x6 Tubular Frame structure of the XT1600 handles the load. This unit is available in 2 different bed lengths to handle your application. - Feeder box Application
XT1600 Tandem Trailers are commonly sold in combination with 14, 16 and 18' feeder boxes but are available for other applications as well. - Riser Package
Depending on tire size, a riser kit is available to achieve necessary tire clearance in some applications. Generally tires larger than 14Lx16.1 will require a riser in with any type of forage box or flatbed installed. - Tire Options
Choose from 12.5Lx15, 14Lx16.1, 16.5Lx16.1, 19Lx16.1, 11Rx22.5 or 425/65x22.5 tire/rim packages. - Tandem Axle System
XT1600 Tandem Axle System features 60/40 offset, HD pivot system, 3" spindles and 8 bolt-8,000# hubs! - Scale Packages
5 point scale package is available for this tandem trailer (hitch weigh bar pictured)
Specs
Model | XT1600 162 | XT1600-L 202 |
Style | Tandem O-Beam | Tandem O-Beam |
Capacity | 32,000 lbs. | 32,000 lbs. |
Tread Width | ||
Spindle Size | 3" | 3" |
Heavy Duty Hubs | 8 Bolt 8000# at 10 MPH | 8 Bolt 8000# at 10 MPH |
Frame Design | 3x6x1/4" Tubing | 3x6x1/4" Tubing |
Weight | 3145# w/riser w/425/65x22.5 | 3240# w/riser w/425/65x22.5 |
Overall Length | 20' 8.5" | 24' |
Bed Length | 13' 7" | 16' 10.5 |
Overall Width | ||
Bed Width | 42" | 42" |
Stake Spacing | 42" | 42" |
Bed Height | ||
Adj. Clevis Hitch | Standard | Standard |
Options | ||
Surge Brakes | N/A | N/A |
Swivel Clevis Hitch | N/A | N/A |
4" Riser Package | Optional Req. for 16.5L, 19L or 425/65 | Optional Req. for 16.5L, 19L or 425/65 |
-
