Features
- Additional Information
You can view additional information about each individual model by viewing the Forage Box Section of the website for the model in question! - RT500 & RT600 Front Unload Feederbox
RT500 available in 14 - 18' versions
RT600 available in 18 - 22' versions
They feature Front Unload, 4' standard sidewalls, 2 augers, 24" frame spacing, direct drive, fiberglass sides, poly floor, poly conveyor liner, rub rails, 36" conv extension and more! The RT500 features 667H apron chain while the RT600 has 667X. - RT200 Front/Rear Unload Feederbox
RT200 available in 16 - 22' versions
They feature Front & Rear Unload, 4' standard sidewalls, 2 augers, 24" frame spacing, 667X apron chain, variable speed belt drive, fiberglass sides, poly floor, poly conveyor liner, rub rails, 36" conv extension and more! - RTX600 Front Unload Feederbox
RTX600 available in 20 - 24' versions
They feature Front Unload, 6' standard sidewalls, 3 augers, 16" frame spacing, 667X apron chain, direct drive, fiberglass sides, poly floor, poly conveyor liner, rub rails, 36" conv extension and more! - RTX200 available in 20 - 24' versions
They feature Front & Rear Unload, 6' standard sidewalls, 3 augers, 16" frame spacing, 667X apron chain, variable speed belt drive, fiberglass sides, poly floor, poly conveyor liner, rub rails, 36" conv extension and more! - 8200RT Front/Rear Unload Feederbox
8200RT BOSS available in 22 - 26' versions (8' inside width!)
They feature Front & Rear Unload, 6' standard sidewalls, 3 augers, 16" frame spacing, 667XH apron chain, 81X cross apron, cab controlled variable speed drive, fiberglass sides, poly floor, poly conveyor floor, rub rails, 24" conv extension and more! - RT100 Rear Unload Tender Box / Feederbox
RT100 available in 16 - 22' versions
They feature Rear Unload, 4' standard sidewalls, 24" frame spacing, 667X apron chain, hydraulic drive, fiberglass sides, poly floor, rub rails & more! Perfect for moving commodities from storage to the mixing area or delivering TMR! - 8100RT BOSS Rear Unload Tender Box / Feederbox (8' inside width!)
8100RT BOSS model is available in 18 - 26' versions
They feature Rear Unload, 6' standard sidewalls, 16" frame spacing, 667XH apron chain, hydraulic gear drive, fiberglass sides, poly floor and more! Perfect for moving commodities from storage to the mixing area or delivering TMR! Truck / Trailer / Wagon Mount - LH or RH Discharge available
All front & front/rear unload feederboxes come standard as LH discharge but are also available in RH as well (Except 8200 which is LH only). RH pictured her - 36" Fold Down Conveyor Extension
This handy fold-down extension package extends down 36" from the side of the feederbox side. Designed to run flat or at mild angles to fill bunks and maintain reasonable distance from feed mangers. Manual lift with shock assist standard, hydraulic lift optional. - PTO / Basic Hydraulic or Cab Control Drive Available
PTO Drive is standard on RT & RTX front unload and front/rear unload models. Basic Hydraulic Drive is optional on RT & RTX front unload and front/rear unload models. Cab Control Hydraulic Drive is optional on 8200RT, RT & RTX front unload and front/rear unload models. - Simple Direct Drive / RT & RTX standard drive
This simple direct drive system allow for simple on / off operation and minimal maintenance. Conveyor/augers have soft start followed by apron with second lever. Various sprockets available to tune the desired discharge rate. - Basic Hydraulic Drive
Optional package on RT & RTX models. This package replaces the PTO powershaft with a hydraulic motor and hoses. This eliminates hooking/unhooking of the PTO between loads for added convenience. Controls on the Feederbox remain the same as a Direct PTO drive unit. - Hydraulic In-Cab Control System
This Optional Hydraulic In-Cab Control System is available for RT & RTX Feederboxes. It allows for full operation of all functions from the seat of the tractor or truck. It includes provisions to lift / lower the cross conveyor extension (if equipped). Requires 25 gpm flow. This package is popular on truck mounts and trailer mount models. - 8200RT BOSS Cab Control Drive
This All-Hydraulic Cab Control Drive is top of the line. It is standard equipment on the 8200RT BOSS Feederbox and designed for large capacity applications. - Scale Packages
Scale Packages are available for all models. Wagon mount 4 cell systems, trailer mount 5-6-8 cell systems and truck mount 6-8 cell systems are available. - Clad Tuff fiberglass Side Panels / Solid Poly Floor
All Meyer Feederboxes have Clad Tuff Fiberglass reinforced side panels and solid poly floor to resist corrosion and ease the strain on the box from heavy loads and cold weather! - Cross Conveyor Poly Liner / Conveyor Chain Hold-downs
All Meyer Feederboxes with a front unload feature have poly lined cross conveyors and hold-down rails to eliminate buildup under the cross apron chain! - 15" Taller Side Option on RT Models - Includes 3rd Auger
This 15" taller side package is optional on RT model feederboxes, it includes a 3rd auger. The standard for a RT model is 4' sidewalls and 2 augers. - 7' Side Package with 4th Beater - Optional RTX
A 7' side package with 4th beater is available for the RTX models. (standard RTX models have 6' sides & 3 augers). - Deluxe Weigh Bar Mount
- Engineered mounting system to adapt to all scale systems. (tandem wagon rear mount pictured)
- Bumper Boards
All Meyer RT & RTX model feederboxes come standard with lower 2x6 bumper boards to help avoid "dings" from the loader! - 2x6 Top Rail Option
This 2x6 top rail package adds capacity and offers protection on RT / RTX models. - 14" Side Extension Package w/4th Beater for 8200RT
The 8200RT BOSS model is 8' wide inside. The standard interior height is 6' but offers a 14" side extension package (screen or solid) with a 4th beater.

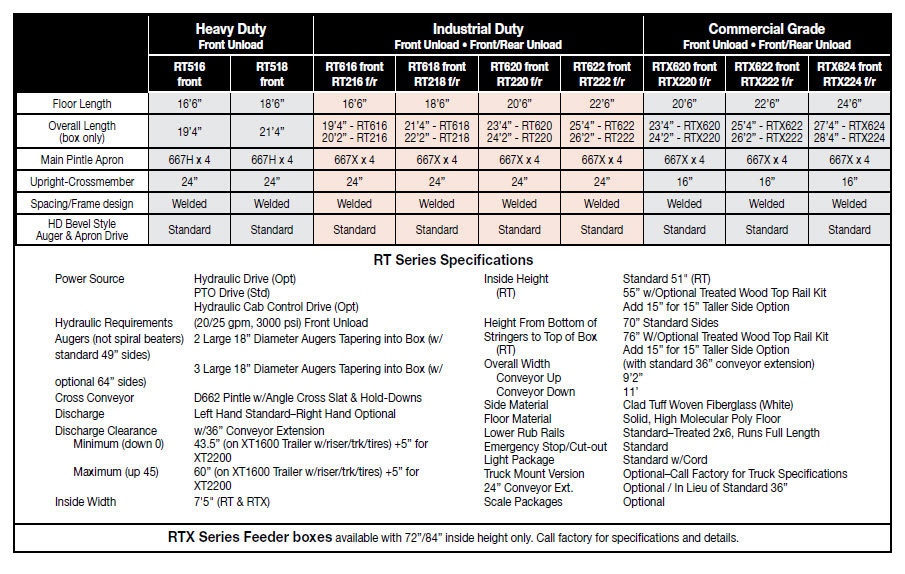

Specs
