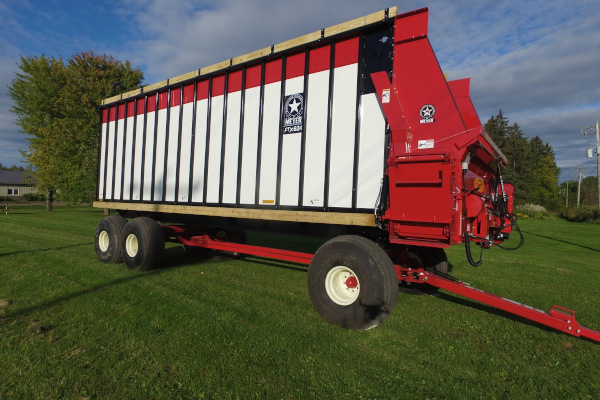

Meyer Farm RTX624
Double tap to zoom
RTX600 Series Front Unload RTX624
The Meyer RTX600 Series Front Unload Forage Box is creme of the crop. The HD steel, 7'5" wide body holds a load and combined with other features like high sides, solid poly floor, HD aprons, 4th beater and cross conveyor extension - you understand this thing means business. 20, 22, 24, 26' lengths available for Wagon, Cart or Truck Mount applications to accommodate all your needs! Options include roof, hydraulic drive packages and more. - Less
The Meyer RTX600 Series Front Unload Forage Box is creme of the crop. The HD steel, 7'5" wide body holds a load and combined with other features like high sides, solid poly floor, HD aprons, 4th beater and cross conveyor extension - you understand this thing means business. 20, 22, 24, 26' lengths available for Wag... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
-
Schedule Demo
Schedule A Demo
Fields with asterisks* are required.
-
Share
Features
- Wagon - Trailer - Truck Mount
- HD steel frame with tubular floor supports on 16" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports on open top models.
- Standard Package includes: High sides, 4th beater, fold-down conv extension (pictured here with optional clad tuff fiberglass sides)
- RTX comes standard as an open top / roof system optional
- Variable speed RT Belt Drive standard equipment - featuring our new, high-efficiency bevel gear-drive system capable of 17' / minute clean-out speed!
- spring loaded chain tensioning on all roller chains (main drive / auger drives)
- HD 2" main drive shaft with machined drive sprockets - tough stuff!
- 18" Diameter drum augers in a tapered formation provide a smooth mat of feed to the discharge conveyor / 4th beater standard on RTX series (pictured here with optional roof and basic hyd drive)
- 24" wide pintle chain apron provides an even discharge to your blower or bagger without the buildup associated with roller chain conveyors. Cross conveyor hold-downs and folding extension are standard equipment!
- Feather start controls including cross apron / auger / main apron. No jaw clutch engagements like other brands!
- Solid Poly Floor - high molecular virgin poly (not reground)!
- LED lighting standard
- Basic hydraulic or cab controlled hydraulic drive available
- Electric front to rear or side to side tarp packages available / front closures required
Specs
| Front Unload | RTX624 |
| Dimensions | |
| Floor Length | 24' 6" |
| Overall Length | 27'8" |
| Inside Height (w/o roof) - std height | |
| - high sides | 7'3" |
| Overall Height (w/o roof) | |
| top of side - std height | |
| - high sides | 106" |
| top of door pivot (RT/RTX200 only) std height | |
| high sides | 115" |
| Less 4" truck & trailer mounts (except on XT1600 trailer*) | |
| Overall Height (w/roof) - wagon mount version - std height | |
| - high sides | 126.5" |
| Inside Width | 89.5" |
| Overall Width w/conveyor extension up | 109.5" |
| Stringer Width/Height | |
| Truck/XT2200 Trailer Mount | 33.5"/6" |
| Wagon Mount | 42"/10" |
| Capacity (struck level) cu. ft. w/o roof | |
| - (6'3) std height | |
| - (7'3) high sides | 1325 |
| Capacity cu. ft (with roof) | |
| - (6'3) std height | |
| - (7'3) high sides | 1585 |
| Specifications | |
| Front Apron Drive Shaft | 2" |
| Tubular Upright Spacing | 16" |
| All Steel Frame - 24" centers (no wood) | Std 16" |
| HD Tubular Floor Supports | 2x2 |
| HD Top Rail Formed (no side supports needed) | Std |
| Commercial Grade Geardrive (no worm gears) | Std |
| Standard Features | |
| RT Variable Speed System - 0-17'/minute (PTO drive standard) | Std |
| Apron Chains (heavy duty pintle) | 667X |
| Spring Loaded/Torsion Style Apron Tightener (RT/RTX200) | Std 224 |
| Direction Control System (patented) | |
| Front to Rear Selection with No Coupler Change | Std 224 |
| Auger Feathering System & Conveyor Clutch/Safety Clutch | Std |
| Cross Conveyor Chain Hold-Downs | Std |
| Fold-Down Conveyor Extension w/ Lift Assist | Std |
| Superslide, Solid Poly Floor (no plywood) (RT/RTX200, RTX600) | Std |
| 12" Higher Sides w/4th Beater System | Std |
| Rear Gate Delay System (RTX200) | Std 224 |
| Optional Equipment | |
| Hydraulic Front Drive System (in lieu of PTO) | Opt |
| Hydrarulic In-Cab Controls (in lieu of PTO) - includes hyd lift conveyor | Opt |
| 36" Fold-Down Cross Conveyor Extension (in lieu of standard 24") | Opt |
| Hydraulic Lift Option for Fold Down Cross Conveyor Extension | Opt |
| Roof Assembly (removable) | Opt |
| Roof Hood Assembly (right hand, open top units only) | Opt |
| Rear Grain Kit (RT/RTX200 only) | Opt 224 |
| False Front Gate for Grain Kit | Opt |
| Truck Mount/Trailer Mount/Wagon Mount | Opt |
| Tarp Systems (w/front enclosures) | |
| Front to Back Scissor Tarp (electric) | Opt |
| Side to Side Roll Tarp (electric) | Opt |
| Clad Tuff Fiberglass Sides & Back | Opt |
-
