Meyer Farm SXI720

New Equipment / All Products / Meyer Farm Equipment / Manure Spreaders / SXI Industrial Series Auger Spreader / SXI720

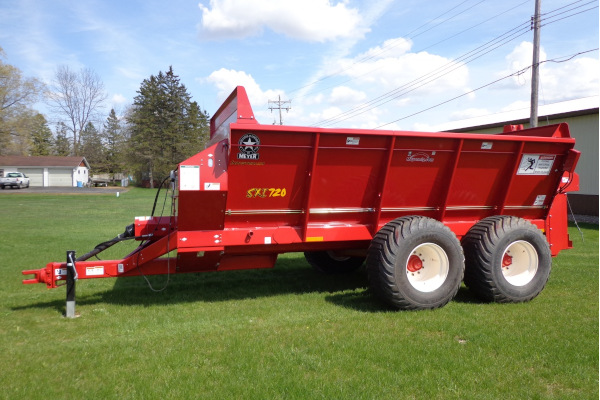

Meyer Farm SXI720 for sale at Kunau Implement, Iowa

Double tap to zoom

Meyer Farm SXI720 for sale at Kunau Implement, Iowa



Features

  • Pull Type or Truck Mount models available
  • Meyer patented straight line flow - provides the ultimate spread performance. Better pattern, faster unload time, less horsepower & minimal wind drift!
  • 3 auger system = only one of its kind. Lower 23" augers feed the rear door while the upper 16" auger levels the load forward and eliminates bridging. ALL SECTIONAL FLIGHTING!
  • The Meyer Dual Lower Auger design creates a wide profile at the bottom of the tank. This means that we can maintain the lowest load height in the industry with maximum capacity. Stops bridging too!
  • Heavy Duty Drivetrain on SXI Models include our RT Geardrive design thereby reducing chain/sprocket reduction. This simple, yet efficient system has #140 final drives for your biggest loads!
  • Simple
    The SXI Drive is completely re-engineered for simplicity, easy maintenance, protection and auger speed adjustable.
  • Auger Speed Changes are quick and easy on standard PTO driven SXI models using this simple A-Plate design. Hydraulic drive augers optional!
  • Independent Lower Auger Shear Bolt Protection is standard. Allows you to protect an obstructed auger while still unloading a majority of the load with the other auger. Bound to save you time!
  • Automaitc Roller Chain Oiler is standard. Oils all roller chains each time you operate the tailgate. Eliminates reduced access and manure contamination associated with oil bath systems.
  • Remote greasing on SXI models is standard allowing for convenient & safe maintenance.
  • 3/8" sectional flighting on lower augers - doubled in critical areas. No paddles to wrap, freeze or wedge rocks like other brands.
  • Our revolutionary T-Post auger hold-down retains a nylatron (no maintenance) bushing and maintains tight auger tolerance to the tank floor. This system provides complete clean-out!
  • Vertical Twin Expellers pulverize material for a smooth, even application. This machine bands material across the back like a fertilizer spreader, unlike side delivery units that attempt to chuck all material out one side. All paddles are easily replaceable and have no pivoting wear-parts!
  • Direct Shaft Drive Expellers / with shock load couplers on all models. No chains on rear of this spreader. Industrial models feature an overrunning clutch on the rear expeller system to eliminate backlash at shutdown!
  • Check out this Shock Load Coupler System! Drastically reduces "shock/stress" related to rocks, ice and foreign objects to your expeller drivetrain. This dampening system along with a torque disconnect clutch protect your expeller drive.CV PTO Standard. 1000 RPM 1 3/8" on SXI720 model - 1000 RPM 1 3/4" on SXI865
  • All Meyer V-Spreaders feature a full channel frame. Stress from hitch, axles and payload is transmitted through the frame system. Take a look at the uni-body designs on most V-Spreader!
  • HD Axles! SXI720 features 3.5" spindles / 10 bolt hubs with an optional high floatation axle set (pictured here). The SXI865 is equipped with the high flotation axle standard. It incorporates 4.5" spindles / 10 bolt hubs to accommodate 28Lx26 tires.
  • SXI720 standard axle system allows for 425/65x22.5, 21.5Lx16.1, 550/45x22.5 or 600/50x22.5 tire options. High Floatation axle is optional on SXI720
  • Swivel Hitch standard on SXI Industrial models
  • LED turn signal light package standard
  • Auger Speed Options as well has hydraulic variable speed auger drives available for specialty applications.
  • A Center Wedge diverts material to the outside of the pattern for consistent spreading in all types of product - liquid or dry!
  • The other guys talk about industrial features, we mean it. This machine is HEAVY DUTY in all the places you need it. Thicker tanks, larger augers, bigger drive components and added protections keep you on top of the game!
  • Large Door Opening
    32x53" Door Opening dwarfs the others.   Combined with the rear unload design, we can move tough loads out fast!  Don't forget, all Meyer V-Spreaders have poly lined gate tracks (not steel on steel).
  • Hydraulic Lid Option
    This optional hydraulic lid assembly provides cleaner transportation and less odor pollution.   Right or left hinge is available and a port hole is standard equipment.   Also available is our hydraulic lock down package!
  • Scale Packages
    SXI spreaders are available with a 5 point scale package.   Standard or Nutrient Tracker versions available.

Specs

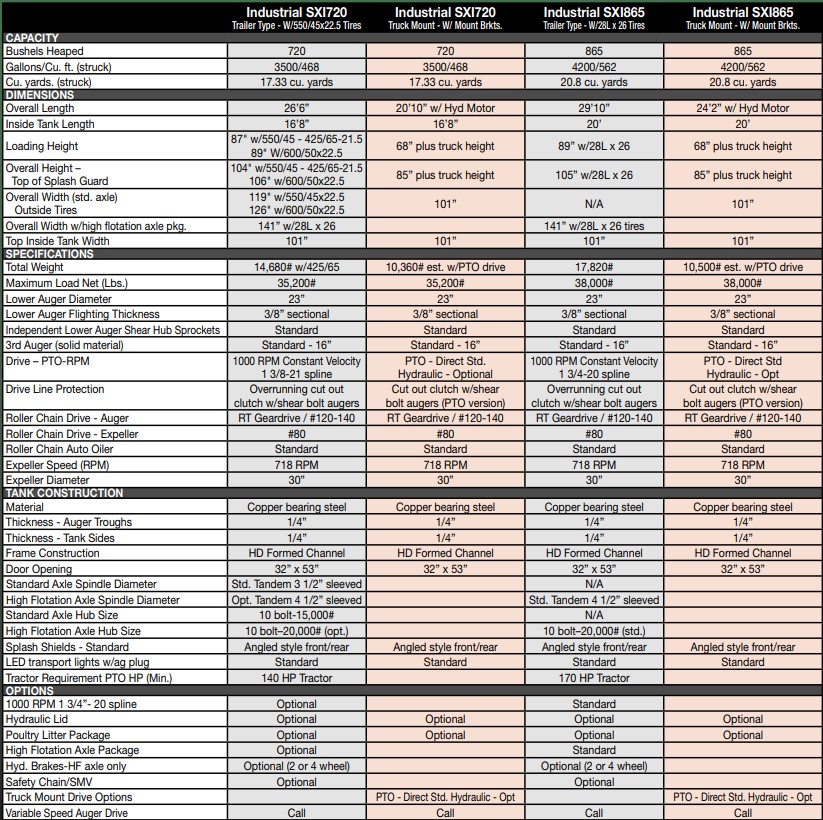

Meyer SXI720 Specs
