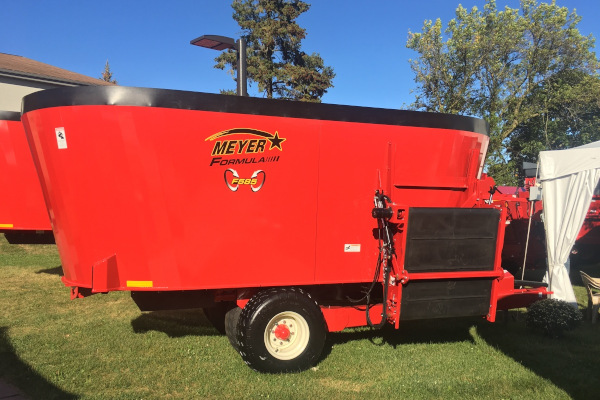

Meyer Farm F585 for sale at Kunau Implement, Iowa

Double tap to zoom

Meyer Farm F585 for sale at Kunau Implement, Iowa



Features

  • The Formula to a good ration starts with the basics. Precisely engineered tank walls, baffles and screws provide accuracy and consistency that you expect!
  • Precisely Engineered Augers - propel your ration up the center of the auger and then down along the outside walls for fast processing while maximizing end-to-end movement between the 2 screws.
  • Lead Edge Scraper is adjustable and replaceable, it is responsible for initiating efficient feed movement in the Formula Mixer (Heat treated - high carbon steel).
  • Auger Discharge Kicker Arm (right side of graphic) provides an extra sweep with every revolution, allowing smoother feedout in less time!
  • Unique 3 piece knife design saves you time and money! This system offers added strength, simple adjustability and reduced replacement costs. (tungsten carbinate coated knives)
  • Step Baffle System
    This unique Step Baffle System aids in front/rear feed movement, reduces horsepower requirements while eliminating overprocessing!   Made from High Carbon Steel to reduce wear!   NOTICE THE 4" STEP WHERE THE BAFFLE MEETS THE FLOOR.
  • Split Drive Protection
    Meyer Formula mid and large frame twin screw mixers feature a unique split drive system that provides unprecidented protection to the drive system of your mixer.   Each planetary is individually protected by a torque disconnect clutch.  This system eliminates undue stress on the front planetary drive.
  • Electric 2-Speed Shifting
    Electric 2-Speed shifting standard.  Meyer Formula mid-sized mixers operate at 30 RPM in Low Range & 46 RPM in High Range.   You can expect efficient mixing, reduced stress on your tractor PTO and faster cleanouts with this simple system!
  • 1000 RPM Drive
    These mid frame Formula Models feature an 1 3/8" 1000 RPM drive.   (CV PTO optional)
  • Independent planetary protection is standard via a simple torque disconnect clutch system.
  • HD Tubular Chassis Design
    The F585 & F700 Formula Models feature mixer bodies supported by a Heavy Duty Tubular Undercarriage and a 4 point weighing system.  Adjustable hitch is standard.   Hitch length is dependent on front conveyor or side door models.  (tandem model pictures)
  • In-Line Quad Axle
    This simple In-Line Quad Axle design is standard.  It features 4 wheels in one plane to reduce tire scrub / wear.   Meyer offers 2 tire packages for this model - 245/70R19.5 recaps and 380/60R16.5 floatation tires.   Oscillating Tandem package is available as an option.
  • Poly Lined Door Tracks
    All Door Tracks are poly lined for reduced wear and stress.   They also eliminate freeze up issues and provide easy long term replacement!
  • Hay Stops
    Hay Stops are double acting and easily adjust for tuning when processing long stemmed material.  Most other hay stops only adjust 1 direction (top or bottom - Meyer does both).  2 Stops are standard equipment.
  • Belt Capacity Extension
    8" Belt Capacity Extension packages are available for all Formula Mixers.   They generally add about 10% to the mixer capacity (Optional).
  • Hay Retention Ring
    Meyer offers a optional hay retention package.   This package is useful when high volumes of long stem material are in your batch.  Itkeeps hay from boiling over the tank and maintains good contact between the bale and auger knives.
  • Stainless Steel Side & Baffle Liners as well as Heat-Treated Auger Flighting available as an option for high usage applications.
  • Meyer offers a wide variety of scalehead options from Digi-Star and Avery Weightronics. Weigh bars and junction box come standard with all Formula mixers.
  • Conveyor Gets Weighed!
    All Formula models weigh product in the mixer tub and on the conveyor - unlike many brands that fail to weigh product that has exited the tank.
  • Door Options
    Formula Mixers offer a wide array of door options.   Choose from Front Door, Rear Door, RH Side Door, LH Side Door or RH/LH Side Door to match your particular needs.   Check out the size of these openings - big door opening combined with faster auger speed provide faster discharge and cleanout!
  • Front Door Conveyor Option #1: Flat Front Belt Conveyor
    This Flat Front Belt Conveyor provides smooth, quiet transfer of feed to the right or the left.   Includes a hydraulic shuttle feature that slides the conveyor right or left of center by 8"! (Chain Available)
  • Front Door Conveyor Option #2: Belt Incline Conveyor
    This versatile Front Belt Incline System allows you to unload out the incline side or flat side.   Silky smooth delivery in 24, 36, 48 & 60" lengths.   Mechanical stop stardard,   Electric splitter valve available to reduce hyd outlet requirements from 3 to 2. (Chain incline available)
  • Side Door Option #1: 12" Belt Slide
    Simple 12" Belt Slide Chute works well to defelct feed beyond the mixer tire and it's simple - no moving parts!
  • Side Door Option #2: Hydraulic Folding Slide Tray
    This Hydraulic Folding Slide Tray with magnets operates at a steep angle for complete discharge!
  • Side Door Option #3 - Belt Discharge Conveyor
    This Side Door Belt Discharge Conveyor works great to reach into various bunk arrangements or just to move feeder further from the mixer (24" - 72").  This belt system eliminates feedback plus your cows won't even hear it running!  (Chain available)
  • Front Viewing Platform (front door only)
    Front Viewing Platform is available in lieu of the standard tank ladder on all front door equipped Formula Mixers.   This feature allows convenient access from the right or left side.
  • Tank Magnet System
    This "Super Strength Tank Magnet" hinges open from the outside of the mixer for easy upkeep and cleaning.  It's an investment that will pay you back many times over.   Other magnet options include - Door Frame Magnet (side door models), Slide Tray Magnet (side door models),  Belt Drape Magnet (front door models) and Deflector/Tip-Off Magnets (Front Door incline conveyor models).
  • Kicker Arm Magnet
    This exciting new magnet outperforms most all other choices and it's priced right. This Rare Earth, round magnet mounts behind our standard kicker arm and collects tramp metal as it circulates through the ration. It provides the perfect hiding spot for iron until you clean it off! If you want a magnet that works at a reasonable price, BUY THIS ONE!

Specs

MODEL - DIMENSIONS (INCHES) F585
Overall Length - side door / frt door 270" / 285"
Mixing Chamber Length 212"
Overall Height (Standard Axle)
Tire Size (Quantity) 245/70R19.5 (4)
Optional Tire Size (Quantity) 380/60Rx16.5 (4)
Base Machine 97"
Belt Extensions 103"
Hay Retention Ring 103"
Tread Width 87"
Transport Width - frt conveyor / side conveyor w/36" ext. 99" / 113"
Max Discharge Reach
Frt Cross Conveyor - flat belt 9"
Frt Cross Conveyor - belt incline-24"/36"/48" 25"/31"/40"
Frt Cross Conveyor - chain incline-24"/36"/48" 22"/34"/45"
Side Conveyor-24"/36"/48"/60"/72" 35"/46"/57"/68"/79"
Side Slide Tray 18"
Side Belt Extension 16"
Max Discharge Height
Frt Cross Conveyor - flat belt 26.5"
Frt Cross Conveyor - belt incline-24"/36"/48" @ 45deg. 44"/50"/58"
Frt Cross Conveyor - chain incline-24"/36"/48" @ 45deg 45"/53"/62"
Side Conveyor-24"/36"/48"/60"/72" @45deg 43"/51"/60"/68"/77"
Side Slide Tray 16"
Side Belt Extension 24"
SPECIFICATIONS
Mixing Capacity
Cubic Feet - no extension/with extenion 585/647
Maximum Net Load - pounds 19,410
Augers
Number 2
Diameter 88"
RPM - standard / high speed 30/46
Upper Flighting Thickness 5/8"
Lower Flighting Thickness 5/8"
Knives - adjustable - (Standard/Max Available) 5/7
Drive
Planetary Split-Drive
PTO Drive 1000 rpm
Protection torque-disconnect
Discharge
Door Opening - Front 42" x 40"
Side 42" x 40"
Rear 42" x 40"
Conveyor Width - front/side 36" / 42"
Front Cross Conveyor Travel - left or right 8"
Tub and Trailer Construction
Floor Thickness 5/8"
Sidewall Thickness 1/4"
Trailer or Subframe inline quad axle
- Optional Axle walking tandem axle
Spindle Diameter 2 3/4"
Scale System 4-point
Tongue Weight - % gross 10%
Tractor Requirement - PTO HP 110
